Basic description

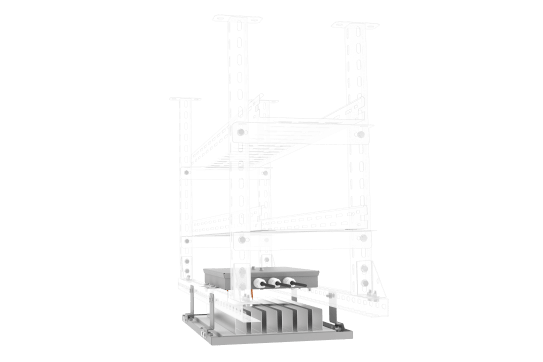

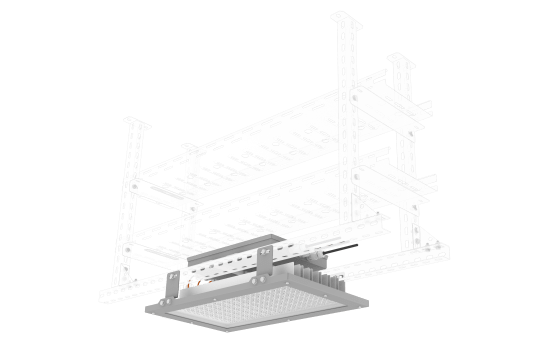

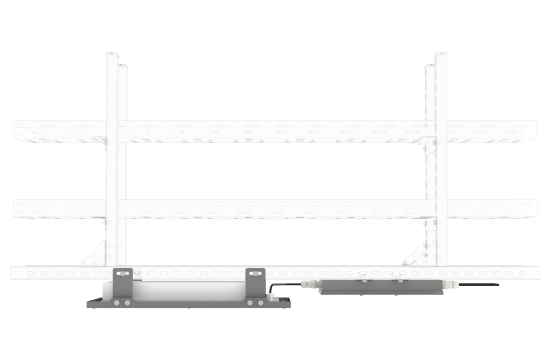

The luminaire EVROLED is designed for lighting
road tunnels. The structure frame of the luminaire
is made of A4 stainless steel, resistant to
combustion engine fumes. The optical elements
providing the necessary light characteristics are
made of PMMA with UV protection. As a whole,
they are covered with a 6-mm thick
OptiWhite tempered glass, which ensures
mechanical resistance IK09. The separate control
gear is made of A4 stainless steel. Electrical
connection consists of Stucchi IP66/IP68
connectors and a cable that meets LSOH - low
smoke zero halogen. The control gear box
includes a fuse box accessible from the exterior
to allow fuse replacement. The luminaire is designed
without the use of aluminium heat sinks. The
power supplies are controlled by DALI protocol. The
lighting part is equipped with a ventilation element
to equalize the pressure inside the luminaire. The
power supply allows setting the function of constant
luminous fl ux CLO.

EvroLED
EvroLED
EvroLED

Material

Housing
STAINLESS STEEL A4
Diffuser
TEMPERED GLASS

LED system

LED module
LED modul THOME Lighting
LED chips
SAMSUNG
Service Life
100000H
K
4000K - 5700K
Power Supply
OSRAM / TCI

DOWNLOAD

Katalogový list EvroLED.pdf
(PDF 5.15 MB)
Katalog 2022 - 2023 THOME Lighting s.r.o..pdf
(PDF 12.01 MB)
Reklamační protokol - THOME Lighting s.r.o.pdf
(PDF 413.76 kB)

Distribution of Luminous Intensity

97A EVROLED.PNG
97A EVROLED.PNG
166A EVROLED.PNG
166A EVROLED.PNG

Standard

50-60Hz frequency
220-240V
5 years warranty
CE
CLO
DALI
IK 09
IP 66
Attached version.
RoHS
 Use: Outside roofed areas.
First class of protection.
Made in THOME Lighting s.r.o.
